Roller shutter rod heroal RS 52

heroal RS 52

Wide roller shutter slat with enhanced wind load resistance

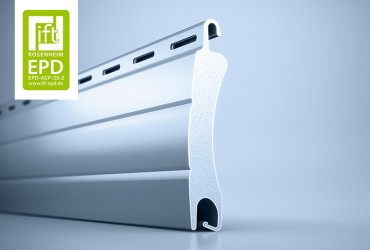

The stability of the 50s series roller shutter slats also makes the heroal RS 52 stand out. With a nominal thickness of 13.5 mm and the polyurethane foam filling, this aluminium roller shutter slat meets excellent wind load requirements – wind load resistance class 4 with element widths up to 3,300 mm. As it winds very tightly, this slat is ideally suited for the use in small roller shutter boxes (Ø 176 mm barrel diameter with a 60 shaft and a curtain height of 2,500 mm).

  • 52 mm coverage width
  • Enhanced total U-value
  • Highly weather resistance surface coating

    Product Details

  • Processing advantages & product details

    Sustainability

    heroal roller shutter slats made of recycled, double-walled aluminium are hail and weather resistant and stand out for their natural protection against corrosion and high material stability. This means that they are not only extremely durable, but also very eco-friendly and sustainable, as they combine a positive impact on the energy efficiency of a building with a very low material input and the use of circular materials.

    Flexibility

    Depending on capacities, heroal roller shutter systems can be ordered as system items, finished curtains or finished elements (heroal Ready).

    Design

    The geometry of the roller shutter slats provides for an ideal winding behaviour, so that even large element widths require only small box sizes. Roll-formed aluminium parts, like slats for roller shutters or roller doors, are coated with heroal 2-layer thick coatings, which have even been certified for marine use. This coating is very colourfast and weather resistant. heroal roller shutters slats stand out for their extremely wide variety of colours. For building shells that appear to be cast from the same mould, heroal 2-layer thick coatings and heroal hwr powder coatings for extruded elements are perfectly matched - for a perfect colour uniformity with the extruded parts of the roller shutter and heroal systems for windows, doors, sliding doors, curtain walls and roofings. Colours from well-known manufacturers of PVC windows are also part of the wide variety of colours.

    Comfort

    heroal roller shutter systems stand out for their extremely silent, smooth running, even when temperatures are very high. Motors from different producers can be used, so that the operation mode can be flexibly adapted to requirements. The connection to a smart home system is also possible.

  • Brochures & test certificates

  • Dimensions & drawings

    Coverage width [mm]
    52
    Nominal thickness [mm]
    13,5
    Weight [kg/m2]
    4,0
    Max. width [mm]
    4.500
    Max. height [mm]
    3.800
    Max. area [m2]
    9,0

    Sectional Drawings

  • Performance characteristics

    5** Hail class
    0,20 ΔR in accordance with EN 13125:2001
    4* Wind resistance
  • CAD & BIM data

  • Tender texts
